Ultra High Molecular Weight Polythylene Linings
- Low Friction Lining Systems

KRAM Engineering (Pty) Ltd Ultra High molecular weight polyethylene sheets combines high molecular weight with polyethylene with inherent characteristics that give rise to a product with the following properties:

Combination of Properties

  • Extremely low coefficient of friction; outstanding sliding properties
  • High abrasion resistance
  • Self-lubrication
  • Non-stick qualities
  • Tough and impact absorption
  • Water repellent / non moisture absorbing
  • High corrosion resistance
  • Ease of machining
  • Sound absorbing
  • Environmentally friendly / recyclable
  • Hygienic, FDA (USA) approved
  • Operating temperatures from
    -200 °C to approximately 90°C
  • Lightweight, easy to install
  • Non-toxic (certain grades)
  • Ability to include colour or performance enhancing additives

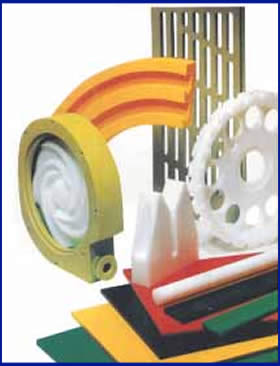

Product Range and Applications

General Engineering
Typical Applications:

  • Sliding elements
  • Chain guides
  • Bearings
  • Bushes
  • Sprockets etc.

Lining for "Bulk Materials Handling"
Applications - Linings for:

  • Bunkers
  • Silos
  • Bins
  • Chutes
  • Rail & Roadtruck



Unit Material Handling and Conveying Industries
Applications:

  • Guides and sliding rails
  • Wearstrips
  • Single and multi track curves
  • Starwheels
  • Tension and deflecting rollers
  • Infeed screws
  • Sprockets
  • Scraper blades
General Lining Information


Sizes available:
Ultra High manufactures press finished 4000 x 1000 lining sheets in thickness ranging from 10mm upwards. For ease of handling sheets are usually cut in 2000mm x 1000mm sizes. ULTRA HIGH manufactures slit finished approximately 1950mm x 950mm lining sheets in thickness from 3mm to 10mm.

Optimum size:
TIVAR lining sheets because of their weight, have a significant advantage over many other lining materials as they can be installed in large sizes such as 2000mm x 1000mm, thereby minimising flow obstruction joints.

Other Applicaions:

  • Filtration
    Sliding seal strips
    Header valve faces
  • Waste Water Treatment
    Sliding elements
    Sprockets
    Wearshoes
  • Concrete Industry
    Mould linings
    Mould inserts
    Chute and bin linings
  • Transportation
    Railroad wear plates
    Break beam guides
    Fenders
  • Timber
    Chain guides
    Sliding rails
  • Chemical Industry
    Bearings
    Valve seals
  • Deep Freeze
    Linings
    Sliding elements
  • Orthopaedics
  • Sport / Leisure
    Skating rinks
    Change room furniture

Applications:

  • Suction Box Covers
  • Foils
  • Forming Boards
  • UHLE Box Tops
  • Sealing Strips
  • Doctor Blades

Paper Industry
Poly Hi Solidur's machined wet and dewatering components have been widely used in the Paper Industry in over 40 countries for many years. Specialised purpose built equipment is utilised for the manufacturing of world-class products for the paper industry. Specially developed and patented grades of UHMW-PE include

  • Solidur DS
  • Ceram P
  • Solidur Supe

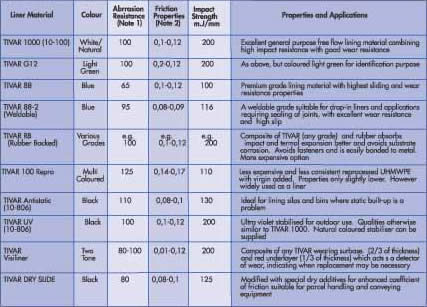

Ultra High Liner Selection Chart
